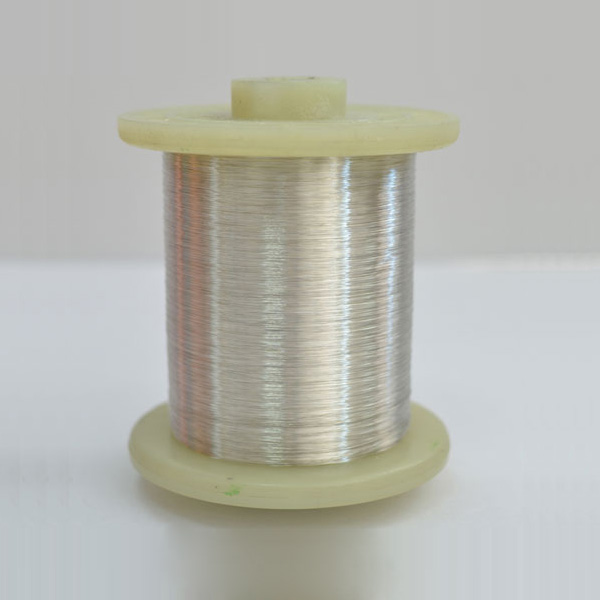

Aluminum-magnesium alloy wire (Grade: 5154)

Overview: The main alloy composition is magnesium, which has good tensile strength and elongation properties compared with pure aluminum wire.

Chemical composition:

Mg:3-3.3%

Si:≤0.1%

Fe:≤0.2%

Cr:0.15-0.2%

Al:rest

Application: Al-Mg Alloy wire can be used for braiding and shielding in flexible coaxial cable,a variety of audio and video cable,vehicle signal cable,network connecting cable,data transmission cables and so on.Can be used for the above cable: the cable condutor,shielding knitting (instead of copper wire and above its shielding effect),single conductor winding and conductor,et.And also apply to needle guided and lead of electronic component,such as capacitor and resitor etc.And also can be used for aluminum

magnesium wire netting,zipper,braiding hose,etc.

AL-MG ALLOY WIRE 5154 (Parameter Table)

	Nominal diameter	Diameter difference	Chemical Performance
			Aluminum(Al)	≥96%	Magnesium(Mg)		(2.6-3.6)%	Other	Surplus
			Electric Power Performance				Physical Performance
			Resistivity	Measured resistance	Density	Conductifivty	(M) Annealed		(Y) Hard
			(20°C)	(20°C)	(20°C)	(20°C)	Elongation	Tensile Strength	Elongation	Tensile Strength
AWG	Φ / mm	± mm	≤Ω.km/ mm2	≤ Ω / km	g / cm3	≥%	≥%	≥MPA	≥%	≥MPA
36	0.127	0.003	49	3947	2.78	35	8	210	1	330
35	0.143	0.003	49	3113	2.78	35	8	210	1	330
34	0.16	0.003	49	2486	2.78	35	8	210	1	330
33	0.18	0.003	49	1964	2.78	35	8	210	1	330
32	0.202	0.004	49	1560	2.78	35	10	210	1	330
31	0.227	0.004	49	1235	2.78	35	10	210	1	330
30	0.255	0.004	49	979	2.78	35	10	210	1	330
29	0.286	0.004	49	778	2.78	35	12	210	1	330
28	0.321	0.004	49	617	2.78	35	12	210	1	330
27	0.361	0.004	49	488	2.78	35	12	210	1	330
26	0.405	0.005	49	388	2.78	35	12	210	1	330
25	0.455	0.005	49	307	2.78	35	12	210	1	330
24	0.511	0.005	49	243	2.78	35	12	210	1	330
23	0.573	0.005	49	193.8	2.78	35	12	210	1	330
22	0.643	0.006	49	153.9	2.78	35	12	210	1	330
21	0.723	0.007	49	121.7	2.78	35	12	210	1	330
20	0.812	0.008	49	96.5	2.78	35	12	210	1	330
19	0.912	0.009	49	76.5	2.78	35	12	210	1	330
18	1.024	0.01	49	60.7	2.78	35	12	210	1	330
17	1.15	0.011	49	48.1	2.78	35	12	210	1	330
16	1.291	0.012	49	38.1	2.78	35	12	210	1	330
15	1.45	0.014	49	30.2	2.78	35	12	210	1	330
14	1.628	0.016	49	24	2.78	35	12	210	1	330
13	1.828	0.018	49	19	2.78	35	12	210	1	330
12	2.053	0.02	49	15.1	2.78	35	12	210	1	330
11	2.305	0.023	49	12	2.78	35	12	210	1	330
10	2.588	0.025	49	9.5	2.78	35	12	210	1	330

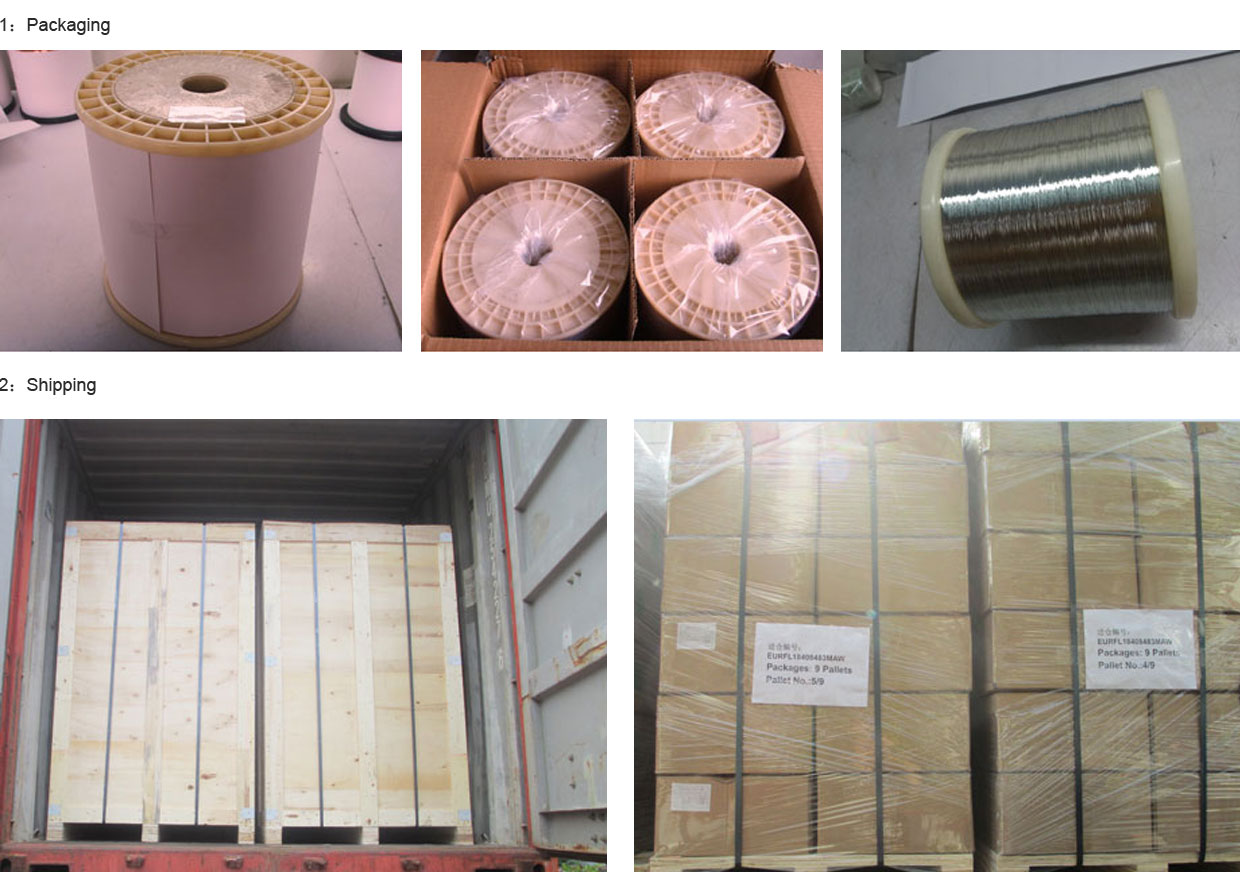

Packaging
